Thibaut TC725

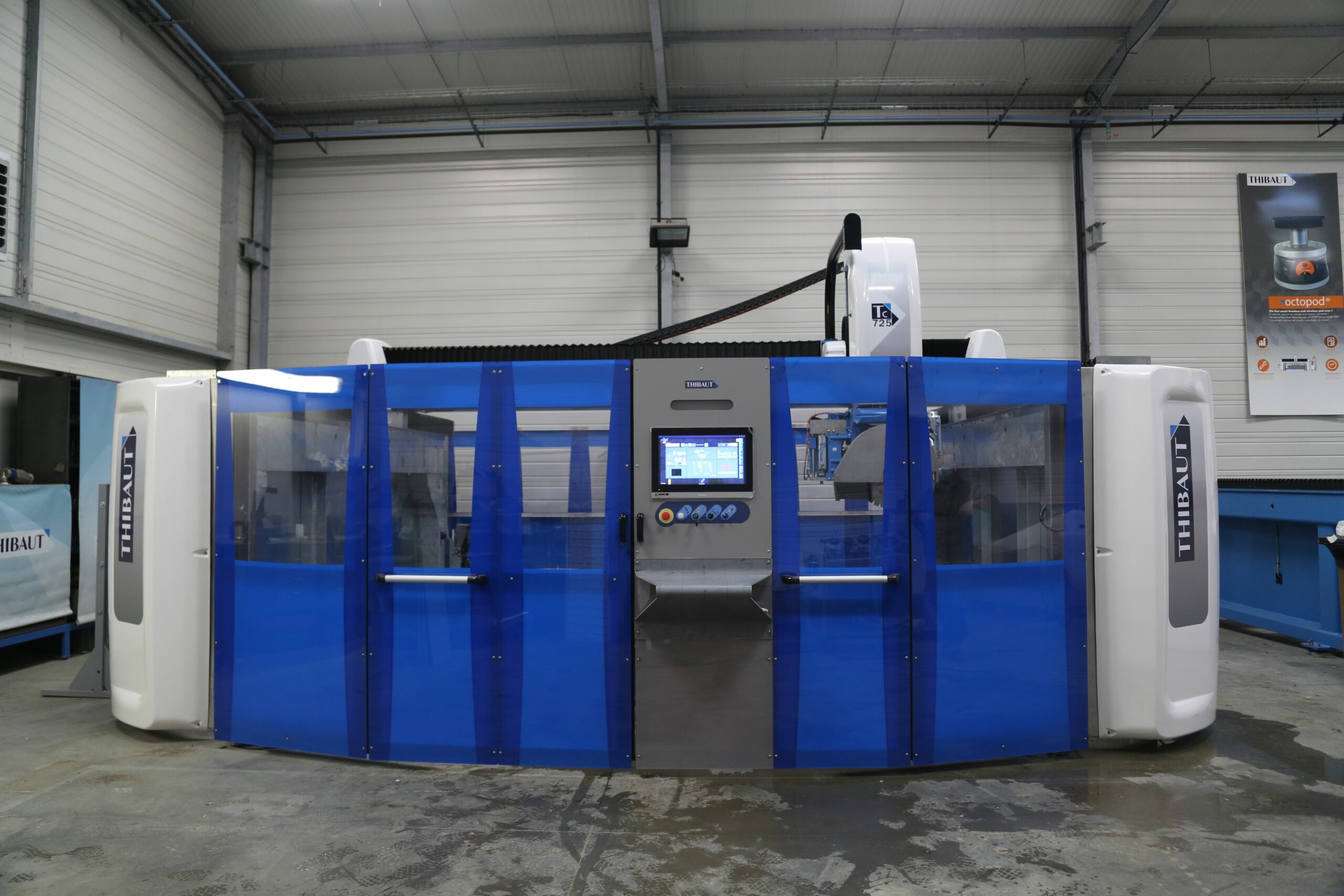

The TC725 is a true 5-axis numerically controlled sawing and shaping centre. The TC725 can automatically cut in all directions up to 250 mm thick or profile workpieces of all shapes. The 360° rotation of the head does not require a rotary table, which makes it a very compact machine.

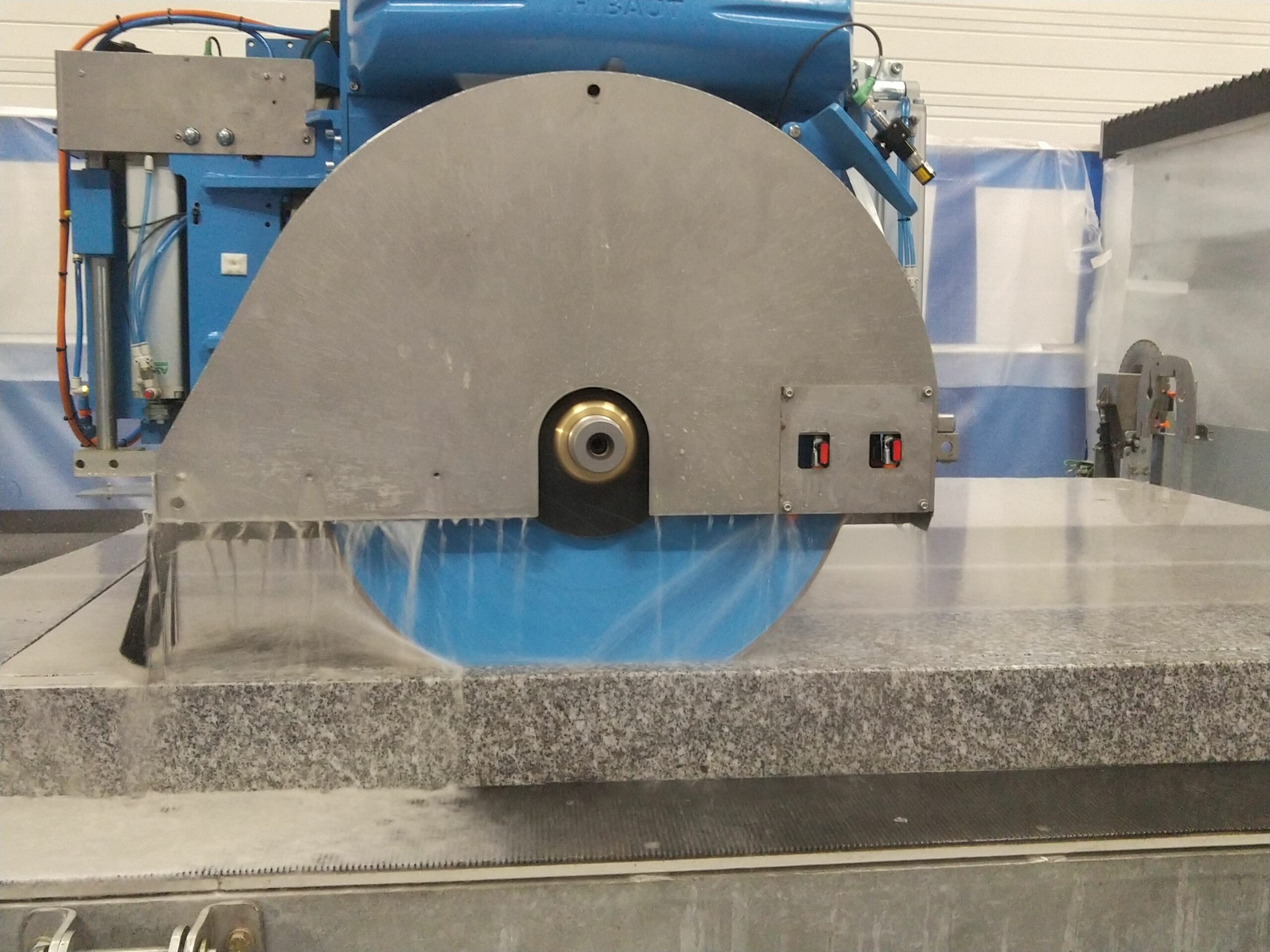

Powerful, the TC725 has a spindle up to 19.9 kW (S6). Its variable speed from 0 to 6000 rpm and its various options give it a very high degree of autonomy and allow it to carry out all types of operations such as drilling, profiling, trimming, sawing, mitre cutting, and brushing, etc.
Want to find out more?
We work alongside some of the World’s leading manufacturers enabling us to offer all of our customers the best solutions in the industry. From 24 hour Call Out Support, Online Remote Assistance, Training and a wide range of OEM spare parts in stock, these are only some of the ways we are able to fully support our products and services.
We have an excellent team of qualified and knowledgeable engineers who have a wealth of experience within the stone industry.
Features
Dimension
Working Capacity
| Working capacity | mm |
|---|---|
| Stroke X | 3700 |
| Stroke Y | 3700 |
| Stroke Z | 700 |

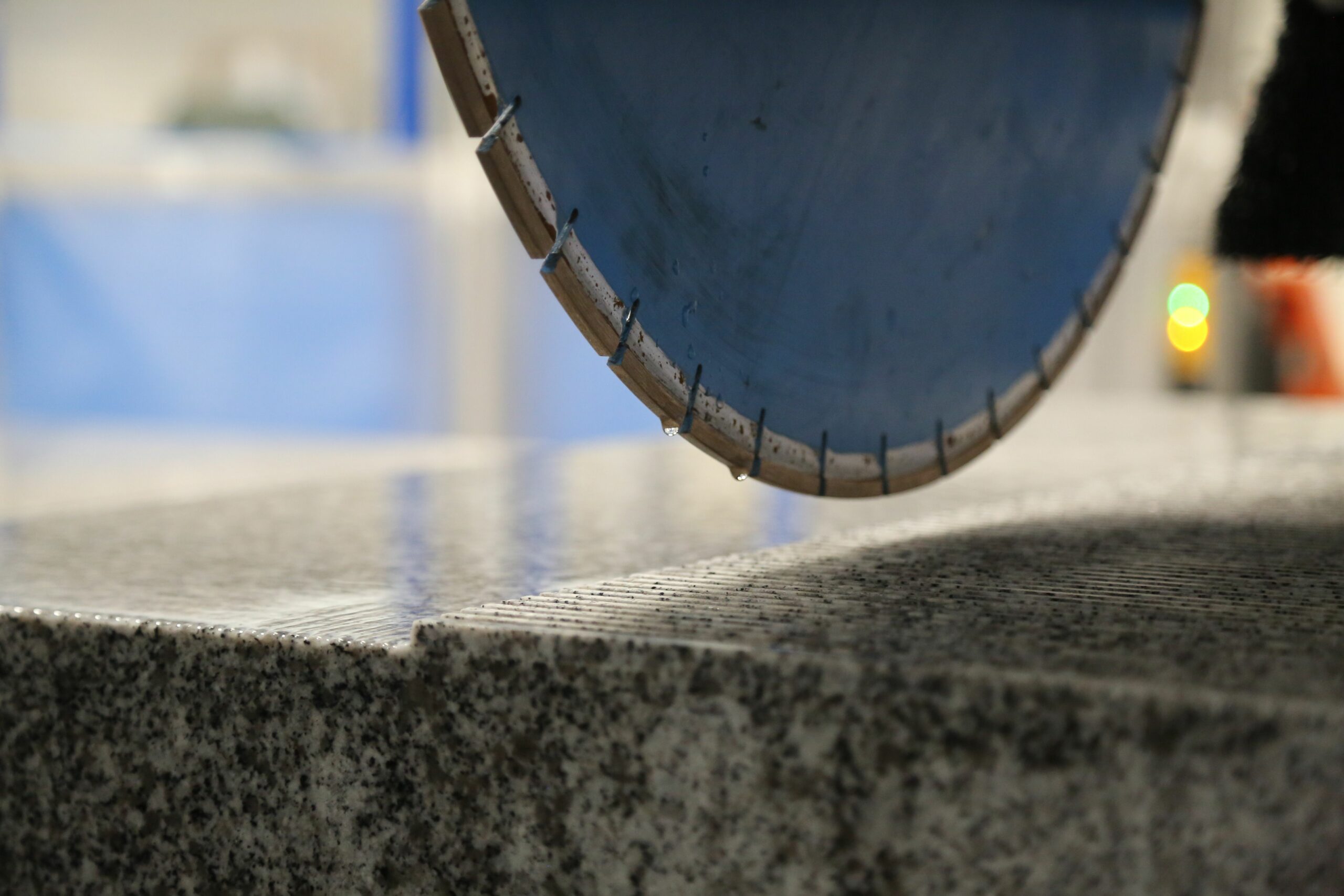

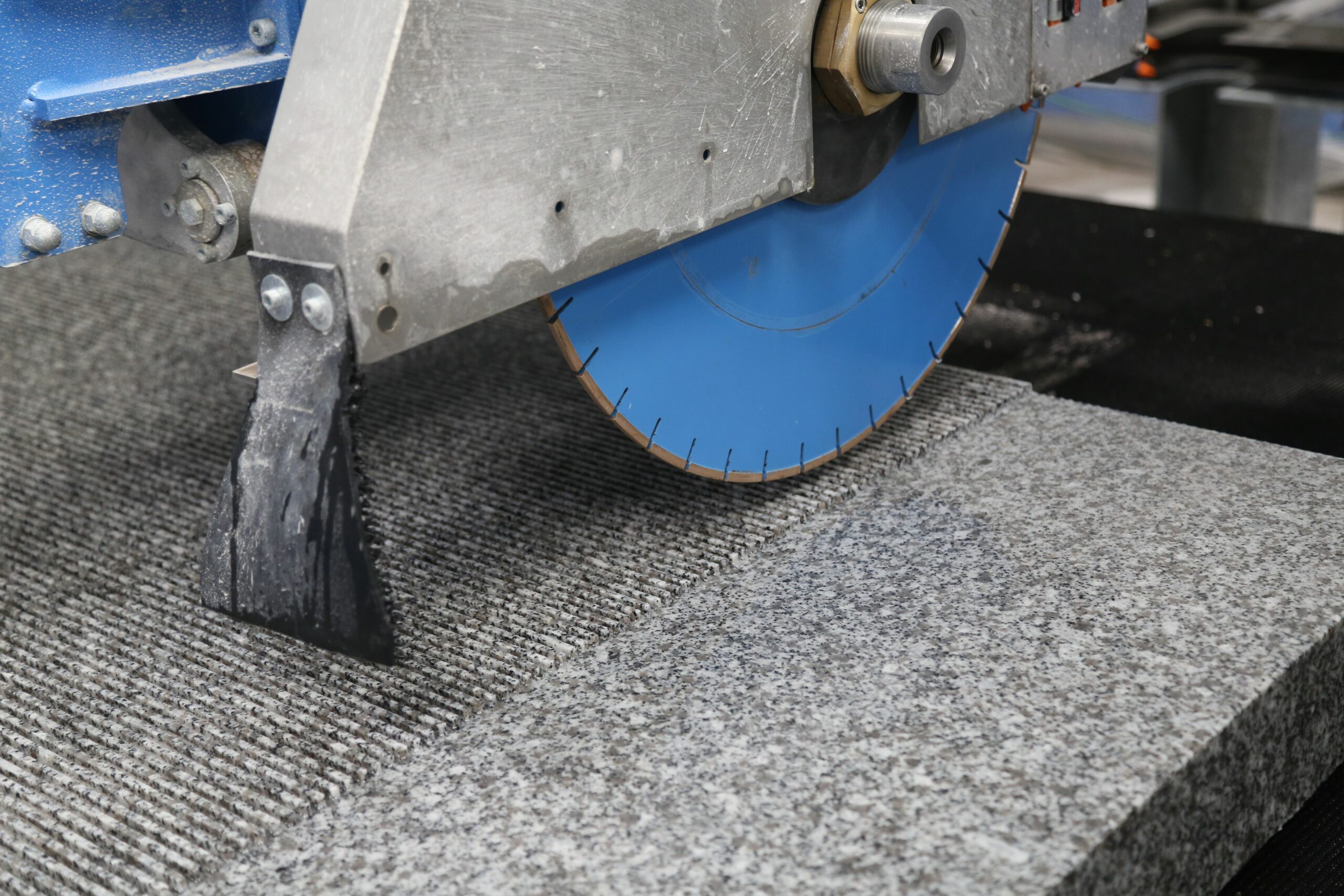

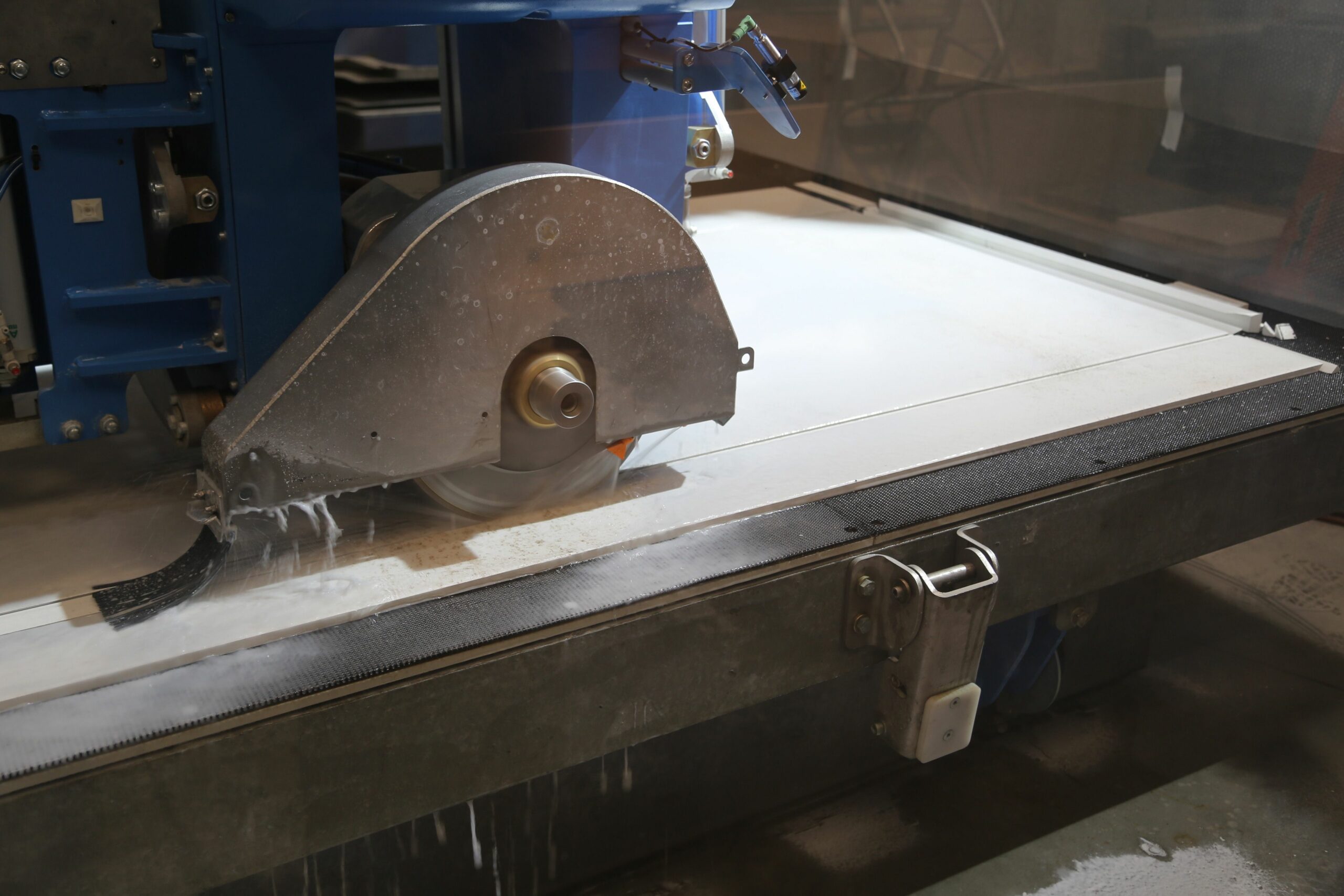

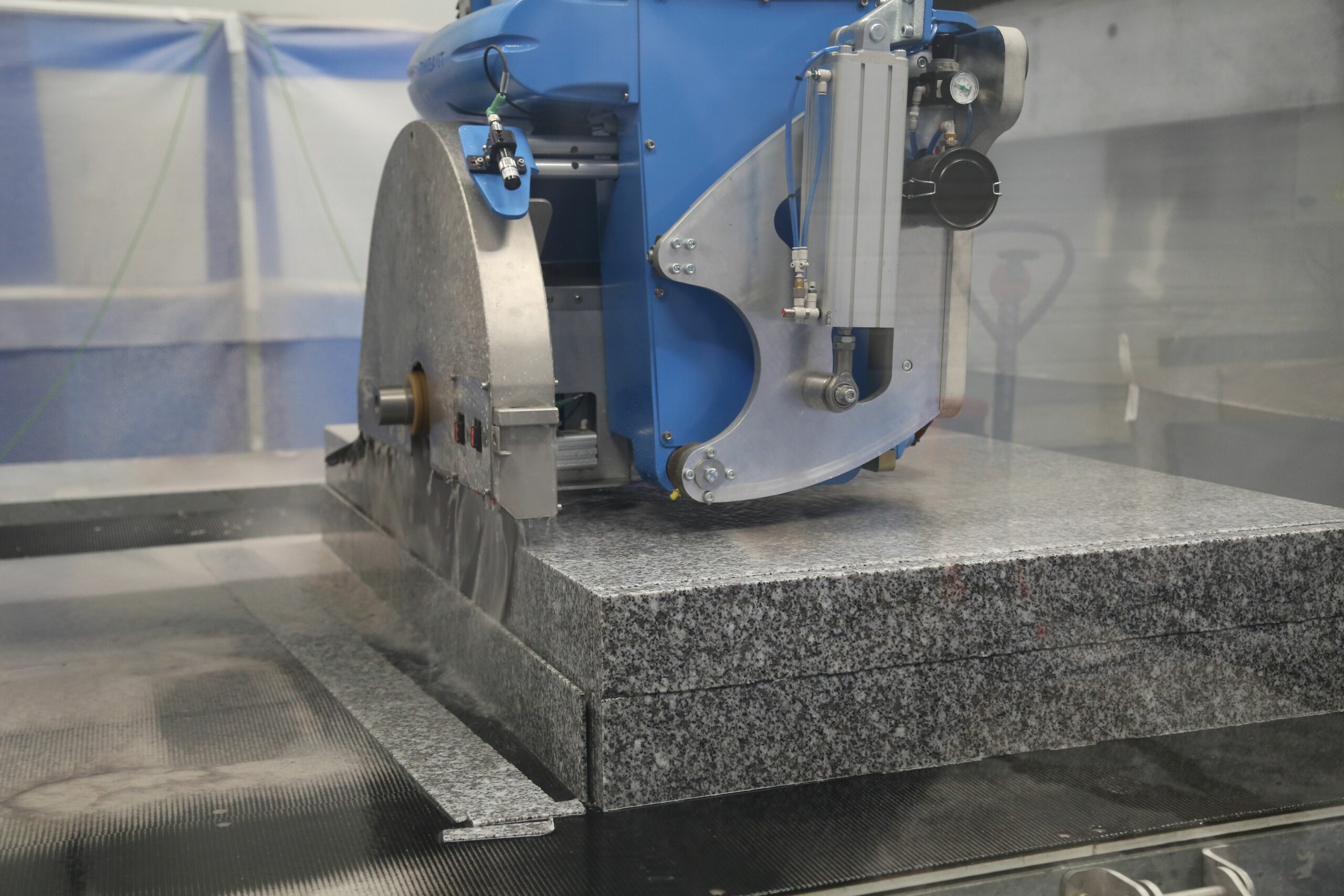

Sawing Capacity
| Sawing capacity | mm |
|---|---|
| Cutting thickness | 250 |
| Min. disc diameter | 350 |
| Max. disc diameter | 750 |
Axes
| Axes | Speed m/min |
|---|---|
| X | 40 |
| Y | 40 |
| Z | 15 |

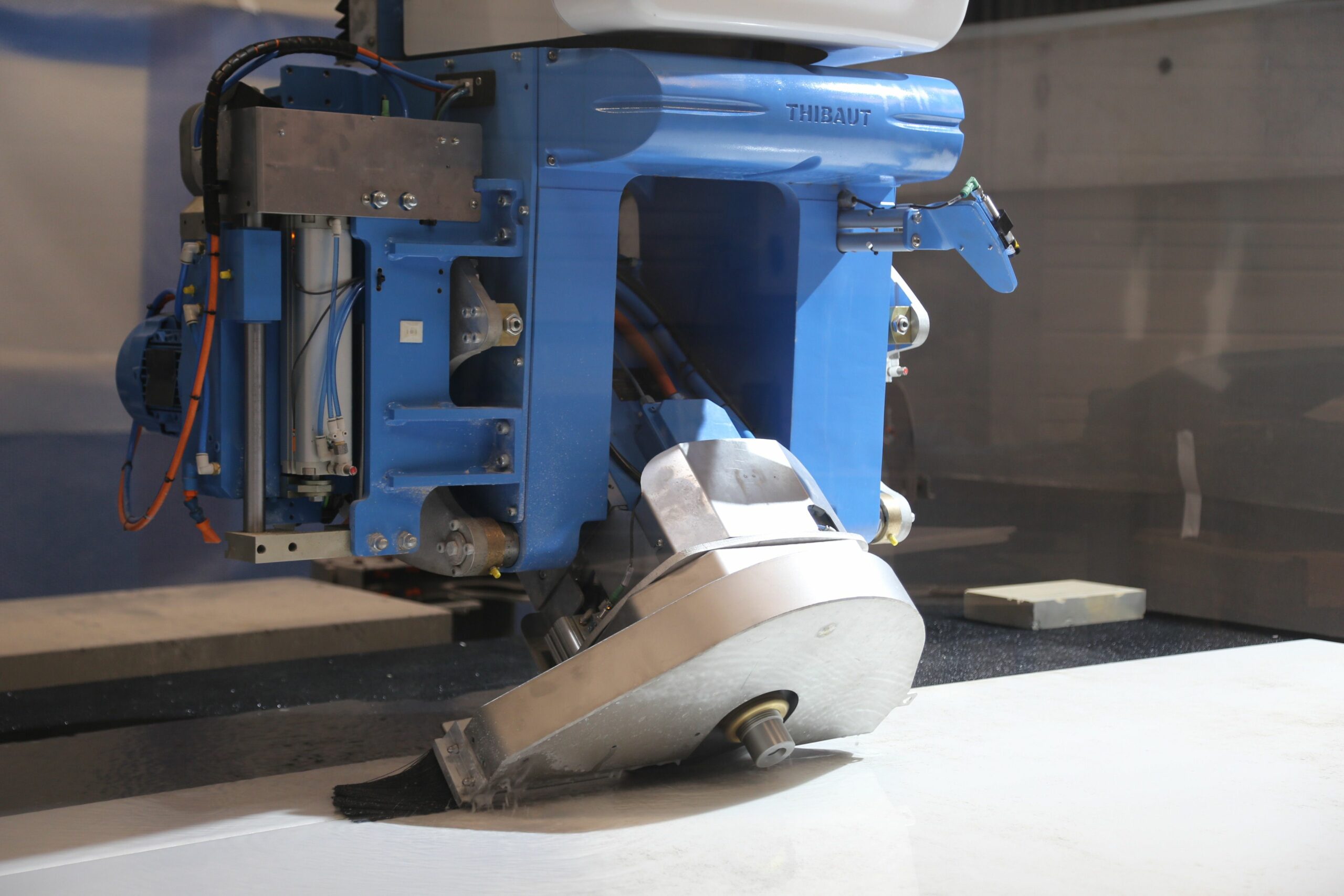

A-axis tilt: 0°/90°
C-axis rotation: ±200°
Spindle motor power: 19.9kW (S6)
Tool rotation speed: 0/6000 tr/min
Total weight: 7300 kg
Standard Equipment
| Cross Laser | Line Laser |
| Mechanically welded walls | Quick-opening housing |

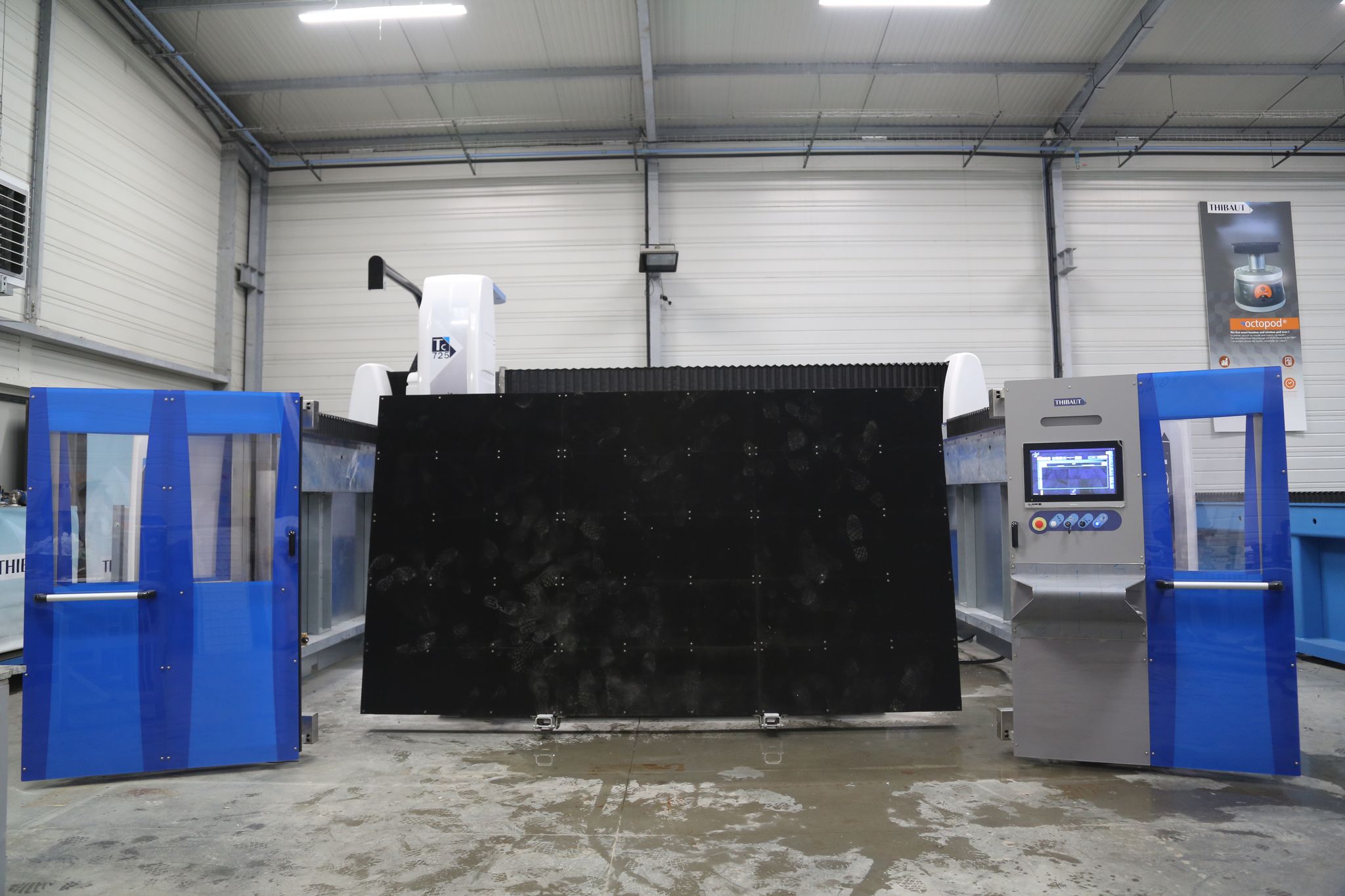

| Touch-screen remote control | Working table 3600x2000mm |
| Retractable front stops | Machine doors with 19″ console |
| Electrical cabinet | 1/2 gas adapter for tools |
Optional Extra's
| Watering for milling tools | Large size flange |
| Camera | Abrasive stone for tool sharpening |
| ACS (Angle Cut Solution) | AVS (Automatic Vacuum Solution max. 750kg) |
| Tilting table | Slab thickness sensor |
Software Included
| Pilot® | Interface developed by Thibaut
|
| Express Jobs | Powerful program including parametric shapes, very easy to use |
Software Optional
| T’Shape 3D shaping software |
| T’Cut 2D cutting software |
| Vein Matching Software Software for 3D visualization of pieces with their veins |
| eT’CAM 2D shaping software designed for decoration |
| T’CAD/T’CAM 3D design and shaping software |
Available Versions
M: A mechanically welded structure consisting of low walls on feet
AUTO: With automatic tool change
TOPS (Thibaut Optimized Processing Solution): Through-feed system to optimize the production of slabs
